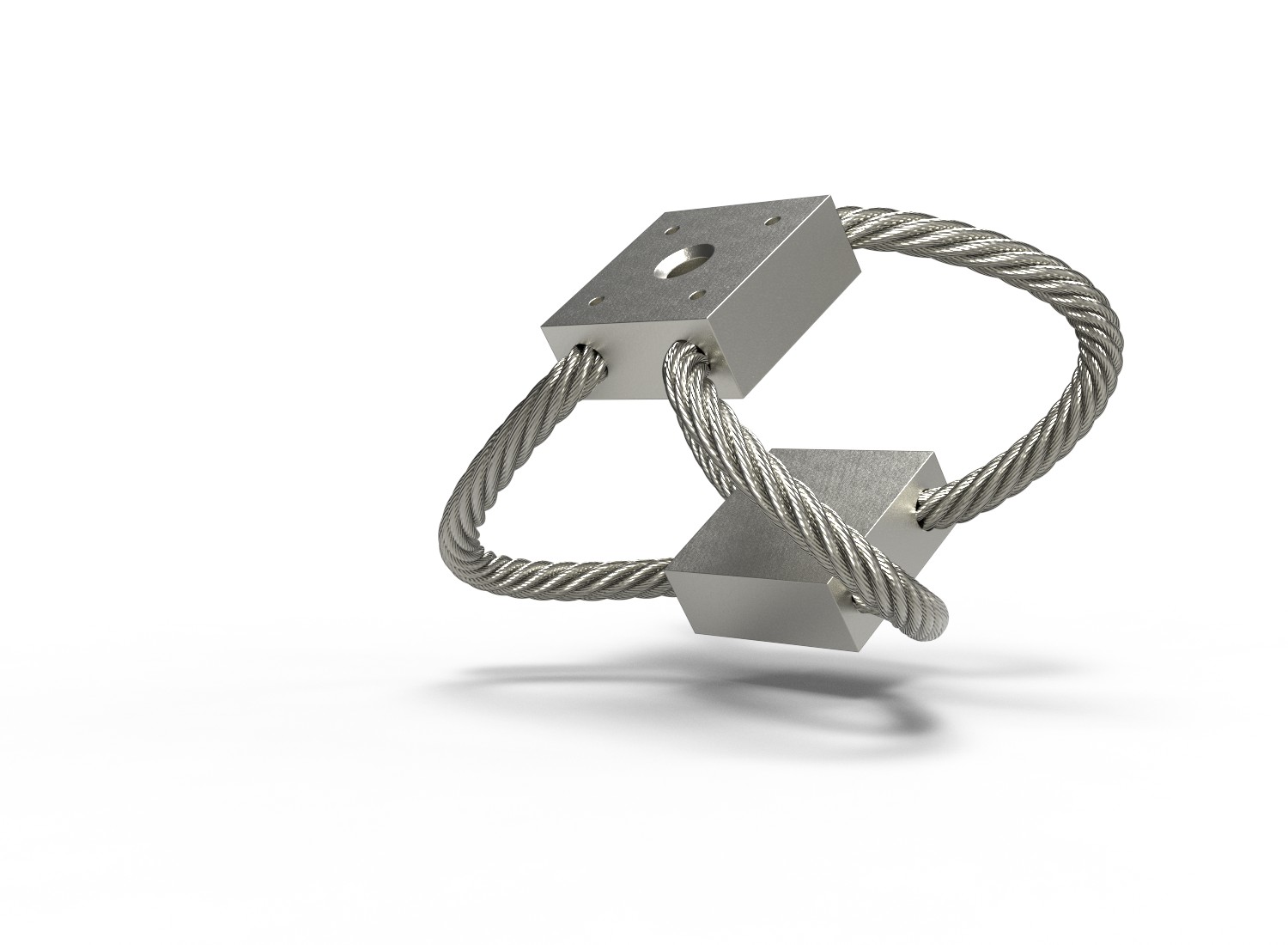

SM Series Wire Rope Isolator
The unique design of the SM Series cable isolator makes it an ideal choice for lightweight equipment requiring a high level of shock & vibration isolation. The symmetrically balanced “S” shaped cables give these wire rope isolators a high degree of vertical stability (even under large excursions). It is this characteristic that makes the SM series wire vibration isolator vastly superior over similar mounts that have a tendency to collapse or buckle under large motions.
- Tech Specs
- Custom Features
- Custom Solutions
- Downloads
- Videos
SM Series Wire Rope Vibration Isolator
- Rugged all metal construction
- Unequalled temp. Range: -200° F to 500° F
- Three axis capability (6 DOF)
- Fail safe construction
- High damping: C/Cc ≈.15-.20
- Long life and maintenance free
SM Series Wire Rope Vibration Isolator
Below are some of the more common alternate materials used in the manufacture of IDC Cable Isolators. This is by no means a complete list. Please feel free to contact our Engineering Department to discuss any other material not shown below.]
- Cable: 305 series SS (low magnetic permeability), 316 series SS (improved corrosion resistance), Galvanized steel (more economical), Inconel, Copper, etc…
- Screws: 305 series SS, 316 series SS, Cad plated alloy steel, Zinc plated alloy steel, 400 series SS, etc…
- Inserts: Key lock inserts per MS51830 & MS51831, etc…
- Retainer Bars: 305 series SS, 316 series SS, 400 series SS, Titanium, Copper, Aluminum alloys (2024, 5052, 7075), Alloy steel, etc…
- Finishes: Zinc plate, Cad plate, Hard anodize, CARC paint, Epoxy paint, Enamel, Polysulfide sealant (corrosion protection), etc…
SM Series Wire Rope Vibration Isolator
IDC is prepared to customize your solution with:
- Custom mounting hole sizes and patterns
- Custom lengths, heights, and diameters (depending on series)
- Custom finishes (anodize, paint, alodine, passivation)
- Stainless Steel bar construction
SM Series Wire Rope Vibration Isolator
SM2
Data Sheet
SM3
Data Sheet
SM4
Data Sheet
SM5
Data Sheet
SM6
Data Sheet
SM7
Data Sheet
SM8
Data Sheet
SM8 Destructive Test
